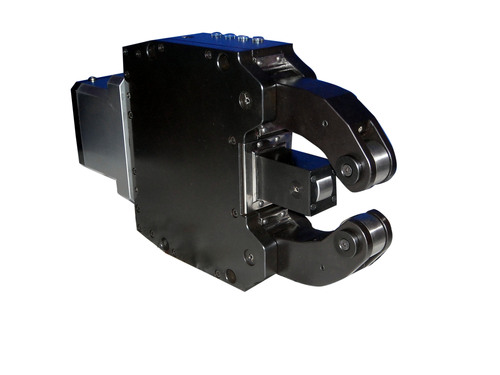

Hydraulic Steady Rest

Hydraulic Steady Rest
Hydraulic Steady Rest
Product Code : 01
Product Description
Exercising our experience gained in this domain, we are manufacturing, supplying and exporting Hydraulic Steady Rest. It is made in close proximity with the international quality standards by employing cutting edge technology. It is not only suitable to use for grinding applications and keeping jobs in place in CNC turning machine, but also ideal for crank and long slender shafts. Hydraulic Steady Rest is duly checked by our quality experts to assure its flawlessness.

Features:
  • Compact size
  • Longer functional life
  • Non-corrosive
  • High material strength

Other details:

All the products are stringently examined on various quality parameters, to ensure the following enlisted attributes:

  • Study construction
  • Longer life
  • Compact design

Types of steady rest:

  • Hydraulic self centering steady rest with rear mounted cylinder
  • Hydraulic self centering steady rest with side mounted cylinder
  • Pneumatic self centering steady rest
  • Self centering steady rest with servo control
  • Hydraulic self centering steady rest for grinding
  • Hydraulic self centering steady rest for crank shaft grinding
  • Hydraulic self centering steady rest for crank shaft turning
  • Hydraulic self centering steady rest for cam shafts
  • Hydraulic self centering steady rest for special purpose

Salient Features:

  • The steady rest can be used for any machine including CNC lathes with a suitable bracket
  • The steady can also be used as a travelling steady. Hence no need of a follower rest
  • Repeatability is within 5 Microns

Working Principle:

The steady rest consists of 3 arms assembled in a steel body with rollers at the arms for holding the work piece. The centre one brings the other two arms in a circular movement to hold the center of the work piece. This helps to get the repeatability and consistency in getting the centering accuracy The centre arm is operated by a hydraulic cylinder. The job holding rollers are lubricated through centralized lubricating system.

Standard range of turning steady rest are the following:

Model no.

Diameter range

Model no.

Diameter range

AAU 1

4 to 64 mm

AAU 6

125 to 460 mm

AAU 2

8 to 101 mm

AAU 7

200 to530 mm

AAU 3

12 to152 mm

AAU 7.1

230 to 630 mm

AAU 3.1

20 to 165 mm

AAU 6

300 to 750 mm

AAU 4

50 to200 mm

AAU 9

400 to 850 mm

AAU 5

45 to 310 mm

AAU 9

500 to 950 mm

AAU 5.1

85 to 350 mm

AAU 10.1

600 to 1100 mm
